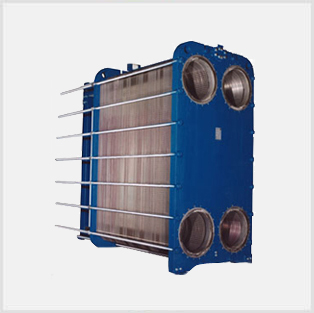

TRANTER GASKETED TYPE PLATE HEAT EXCHANGERS |
|
During the floating seal plates have circles.
In addition, there are four seals around the entry of both.
This also means that a heating surface of contact with only one of the two fluids.
Next plate has a gasket around the other two entries.
Thus, two consecutive plates, the fluid channel system consists of a pass each other without interference.
|
| |
|
 |
| |
|
 PRODUCT DETAIL CHART |
| Maximum Working Pressure |
: |
25 Bar |
| Maximum Working Temperature |
: |
180° C |
| Maximum Connection Diameter |
: |
DN500 |
| Plate Materials |
: |
AISI316, Titanium, SMO254, Hastelloy276, Inconnel 825 |
| Gasket Materials |
: |
NBR(P) Max. 140°C, EPDM(P) Max. 170°C, Viton(GF) Max. 200°C |
| Fluids |
: |
Liquid & Gas |
|
|
|
|
| MAINLY APPLICATIONS |
| Industrial applications |
| Disrict Heating & Cooling |
| Geothermal Energy |
| Boiler Applications |
| Pressure break in High buildings |
| Oil coolers |
| Sea Water applications |
| Heat recovery systems |
|
|
|
|
 |
 |
 |
|
|
